| 盈正 不中斷電源系統 MSII RT4.5-20K |
 |
| 盈正 不中斷電源系統 MSII RT4.5-20K |
 |
| 盈正 不中斷電源系統 MSII RT4.5-20K |
 |
盈正 不中斷電源系統 MSII RT4.5-20K特性
公司官網
|
2013年11月28日 星期四
盈正 不中斷電源系統 Single Phase On-Line UPS Convertible Type MSII RT4.5-20K
2013年11月26日 星期二
盈正-不斷電系統 > Socomec >DELPHYS MX
 |
盈正-不斷電系統 > Socomec >DELPHYS MX特性Range: 250K~500K Power factor: 0.9 Efficiency: 94%~96% 通過德國TUV品質系統驗證 Paralleling: Yes
產品詳細敘述請件以下網址
公司官網
|
盈正-不斷電系統 > Socomec >Green Power
 |
盈正-不斷電系統 > Socomec >Green Power特性 |
Range: 100K~200K
Power factor: 0.9
Efficiency: 96%
通過德國TUV品質系統驗證
Paralleling: Yes
產品詳細敘述請件以下網址
公司官網
盈正-不斷電系統 > Socomec >Mastery
 |
| 盈正-不斷電系統 > Socomec >Mastery |
特性
Range: 15K~80K
Power factor: 0.8
Efficiency: 94%
通過德國TUV品質系統驗證
Paralleling: Yes
產品詳細敘述請件以下網址
公司官網
2013年11月25日 星期一
盈正 > 電源監測系統> Battery Monitoring System >Enerbatt 3G
 |
| 盈正 電源監測系統 Enerbatt 3G |
 |
| 盈正 電源監測系統 Enerbatt 3G |
 |
| 盈正 電源監測系統 Enerbatt 3G |
 |
| 盈正 電源監測系統 Enerbatt 3G |
 |
| 盈正 電源監測系統 Enerbatt 3G 特性
Wireless Battery Monitoring System
Wireless Communication
Easy Installation
Save Cost
Graphic LCD Touch Screen
Real Time Monitoring: Block Voltage, Block
Impedance, Temperature, String Voltage & Current
Alarm via email & dry contact
History Databases
Colorful Bar/Curve Diagrams
User-default Configurations & Deviation
Levels
Provides Ethernet/RS485 for Remote
Monitoring
產品詳細敘述請件以下網址
公司官網
|
2013年11月24日 星期日

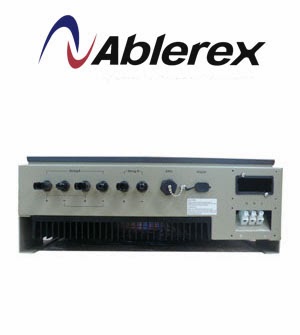

盈正 > 太陽能產品> 太陽能逆變器 >Stand-Alone System
 |
| 盈正 太陽能產品 Stand-Alone System |
 |
| 盈正 太陽能產品 Stand-Alone System 特性 The Buck-1000/1500 developed by Ablerex can be used universally for 12, 24, 36 and 48 V. Its broad DC input voltage range makes sensible system configuration possible for almost all PV modules. Thanks to the integrated MPP tracking, the charger guarantees an energy yield that is 15 – 30 % higher than that of conventional shunt and serial charge controllers. Auto-selection three-stage (Bulk/Pulse/Float) charge mode to reduce 1~3 times charge time and maximize system performance. What is unique about charge controllers of this power range is the high protection class, and the broad temperature range that makes worldwide use even in harsh ambient conditions possible. The easy installation and completely automatic customization of the controller settings by the SA series make its commissioning very easy. 產品詳細敘述請件以下網址 http://www.ablerex.com.tw/ch/products_4.php?bgid=3&mgid=31&sgid=58 公司官網 http://www.ablerex.com.tw/ch/index.php |
2013年11月21日 星期四
.jpg)
.jpg)
.jpg)
盈正 > 太陽能產品> Grid-Connected Three Phase >EnerSolis 6K-12KW
 |
| 盈正 太陽能產品 EnerSolis 6K-12KW |
 |
| 盈正 太陽能產品 EnerSolis 6K-12KW |
 |
| 盈正 太陽能產品 EnerSolis 6K-12KW |
 |
| 盈正 太陽能產品 EnerSolis 6K-12KW 特性 EnerSolis Series Grid-connected Photovoltaic Inverter Three-phase Inverter Acceptable Input Voltage up to 1000 Vdc Transformer-less Topology Maximum Efficiency 97.5% Protection Class IP65 Dual Independent MPP Trackers Intelligent MPPT Technology Active and Passive Anti-islanding Technology Compact Design User Friendly LCD Display High MTBF Components Temperature-dependent Fan Cooling Integrated DC Switch High Performance DSP Controller Built-in RS232 and RS485 Communication Ports Firmware Upgradability Wide MPPT Voltage Range with Nominal Power Allowable De-rating Operation Maximum Output Power Clamping Multi-Operation Mode Multi-Country Certifications 產品詳細敘述請件以下網址 http://www.ablerex.com.tw/ch/products_4.php?bgid=3&mgid=30&sgid=57 公司官網 http://www.ablerex.com.tw/ch/index.php |
2013年11月20日 星期三
盈正 > 太陽能產品>Grid-Connected Single Phase>EnerSolis 2000W
 |
| 盈正 太陽能產品 EnerSolis 2000W |
 |
| 盈正 太陽能產品 EnerSolis 2000W 特性 |
Highlights
Compact Size & low weight
User Friendly LCD Display
Use High MTBF Component
Convection Cooling (Fan-less)
Intelligence DSP Controller
Protection class IP65
Wide MPPT range of 100 to 400 Vdc
Intelligence MPPT Technology
Anti-islanding Technology
RS232 and RS485 communication
De-rating function
High MPPT tracker efficiency
Easy installation
Integrated DC switch
產品詳細敘述請件以下網址
公司官網
2013年11月19日 星期二
盈正 > 主動式濾波器>Module APF>Cabinet APF> ESD34 100A & 150A
 |
| 盈正 ESD34 100A & 150A |
 |
盈正 ESD34 100A & 150A特性
True Harmonic Solution
IP00 Design
Compact Size Design
Easy to Install in Small Cabinet
Up to 51st Harmonic
Close/Open Loop Control
Programmable Harmonic Compensation and Power Factor Correction
Load Balancing Function
Full-time DSP Control System
Up to 8 units in parallel
Parallel Operation in Various Current Ratings
User Friendly Operation Interface --7” Colorful LCD Touch Screen
產品詳細敘述請件以下網址
公司官網
|
2013年11月18日 星期一
盈正- > 主動式濾波器>Module APF>Cabinet APF>ES34 ESD33
 |
| 盈正 ES34 ESD33 |
 |
| 盈正 ES34 ESD33 |
 |
| 盈正 ES34 ESD33 |
 |
盈正 ES34 ESD33特性
Minimum response time 1ms
Current limit compensation
Easy installation / Close loop / Open loop
LCD Display/ Harmonic spectrum / V,A waveform (Option)
產品詳細敘述請件以下網址
http://www.ablerex.com.tw/ch/products_4.php?bgid=2&mgid=23&sgid=40
公司官網
|
2013年11月14日 星期四
盈正- > 主動式濾波器>Module APF>Enersine ESD34
 |
| 盈正- Enersine ESD34 |
 |
| 盈正- Enersine ESD34 |
 |
| 盈正- Enersine ESD34 |
 |
盈正- Enersine ESD34特性
Modular Design, Rack / Wall Mount compliable
Fast Fourier DSP Control Compensate up to 51st harmonic current Power Factor Correction Load Balance Correction
產品詳細敘述請件以下網址
公司官網
|
2013年11月13日 星期三
盈正-不斷電系統 > Single Phase On-Line UPS >MSII 4.5-20K
 |
| 盈正-不斷電系統 MSII 4.5 - 20K |
 |
| 盈正-不斷電系統 MSII 4.5 - 20K |
 |
盈正-不斷電系統 MSII 4.5 - 20K特性
Simple Parallel Installation
Full-time Digital Signal Processor Control Programmable Frequency Converter LCD/LED Mimic Panel Multi-Mode Operation Simple and Easy to Use Optional Galvanic Isolation Transformer Optional Hot Swappable Battery
產品詳細敘述請件以下網址
公司官網
|
2013年11月12日 星期二

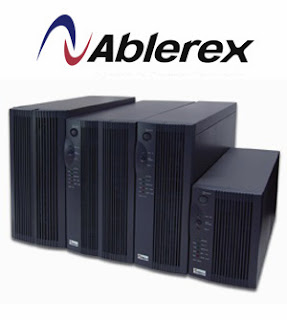

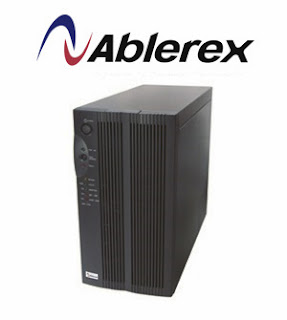

盈正-不斷電系統 > Single Phase On-Line UPS >Mars 1-3K
 |
| 盈正 不中斷電源系統Mars 1-3K |
 |
| 盈正 不中斷電源系統 Mars 1-3K |
 |
| 盈正 不中斷電源系統 Mars 1-3K |
 |
盈正 不中斷電源系統 Mars 1-3K特性
Simple Parallel Installation
Full-time Digital Signal Processor Control
Programmable Frequency Converter
LCD/LED Mimic Panel
Multi-Mode Operation
Simple and Easy to Use
Optional Galvanic Isolation Transformer
Optional Hot Swappable Battery
產品詳細敘述請件以下網址
公司官網
|
2013年11月11日 星期一

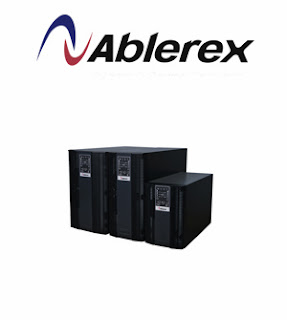

盈正-不斷電系統 > Single Phase On-Line UPS > ARES 1-3K
 |
盈正-不斷電系統 ARES 1-3K
|
 |
盈正-不斷電系統 ARES 1-3K
|
 |
盈正-不斷電系統 ARES 1-3K
|
 |
盈正-不斷電系統 ARES 1-3K
|
特性
0.9 Output Power Factor
True
On-line Double Conversion Topology
Advanced
Digital Control Technology
Wide
Range Input Window from 110~300Vac
Active
Harmonic Current Control
Multi-Mode
Operation
Programmable
Receptacles (Option)
Remote
Emergency Power Off (Option)
Personalization
& Intelligent Self-diagnostic
Easily
Program Upgrade
規格
|
MODEL
|
AS 1K
|
AS 2K
|
AS 3K
|
||||||||||||
|
Input
|
Voltage
|
110~300Vac **
|
|||||||||||||
|
Frequency
|
45~65Hz (Auto Sensing)
|
||||||||||||||
|
Phase
|
Single + G
|
||||||||||||||
|
Power Factor
|
≧ 0.99 at Linear Load
|
||||||||||||||
|
Output
|
Voltage
|
200/208/220/230/240
|
|||||||||||||
|
Capacity
|
1000VA / 900W
|
2000VA / 1800W
|
3000VA / 2700W
|
||||||||||||
|
Frequency (Synchronized Range)
|
3Hz or 1Hz(Selectable)
|
||||||||||||||
|
Frequency (Battery Mode)
|
50/60Hz ± 0.1% Unless Synchronized to Line
|
||||||||||||||
|
Crest Factor
|
3:1
|
||||||||||||||
|
Harmonic Distortion
|
< 3 % (at Full Linear Load)
|
||||||||||||||
|
Output Waveform
|
Pure Sine Wave
|
||||||||||||||
|
Transfer Time(AC to DC)
|
0 ms
|
||||||||||||||
|
Efficiency
|
90% (Line Mode)
|
||||||||||||||
|
DC start
|
Yes
|
||||||||||||||
|
Battery
|
Number of Batteries
|
2
|
4
|
6
|
|||||||||||
|
Type
|
Sealed Lead Acid Maintenance Free
|
||||||||||||||
|
Capicity
|
12V/7AH
|
||||||||||||||
|
Rated Battery Voltage
|
24Vdc
|
48Vdc
|
72Vdc
|
||||||||||||
|
Recharge time (to 90%)
|
3-6 hours
|
||||||||||||||
|
Display
|
LED
|
Standard
|
Load Level/Battery Level/ Battery Mode/ Normal Mode/Bypass Mode/
Self-Test/ Weak/Bad Battery/Site Wiring Fault/ Fault/ Overload
|
||||||||||||
|
Option
|
Programmable Outlet1/ Programmable Outlet2
|
||||||||||||||
|
Self Diagnostics
|
Front Panel or Software Control
|
||||||||||||||
|
Button
|
ON/Alarm Silence Button/ OFF Button/ Test/Level Button
|
||||||||||||||
|
Alarm
|
Audible and Visual
|
Line Failure, Battery Low, Overload, System Fault Conditions
|
|||||||||||||
|
Protection
|
Overload Capacity
|
105% continuous, 120% for 30 sec. , 150% for 10 sec
|
|||||||||||||
|
Short Circuit
|
Output Breaker/Electronic Circuit
|
||||||||||||||
|
EPO
|
Output Shuts Down Immediately
|
||||||||||||||
|
Over Temperature
|
Bypass or Shutdown Immediately
|
||||||||||||||
|
Physical
|
Dimensions (WxHxD,
mm/inch)
|
236x144x367 / 9.2x5.6x14.4
|
322x151x444 / 12.6x5.9x17.4
|
322x189x444 / 12.6x7.4x17.4
|
|||||||||||
|
Net Weight (kgs/Ibs)
|
10 / 22.04
|
16.5 / 36.3
|
22.5 / 49.5
|
||||||||||||
|
Outlet
|
(3) IEC 320-C13
|
(6) IEC 320-C13
|
(6) IEC 320-C13
|
||||||||||||
|
Environment
|
Noise Level
|
＜50dBA
|
|||||||||||||
|
Altitude
|
1000m/3300ft without de-rating
|
||||||||||||||
|
Humidity
|
0 to 90% (Without Condensation) @ 0 to 40℃ / 32 to 104 ℉
|
||||||||||||||
|
Interface
|
Interface Type
|
RS232, USB (Option)
|
|||||||||||||
|
Communication Slots
(Option)
|
USB, Dry Contact Relay, SNMP/Web Card
|
||||||||||||||
|
Compatible Platforms
|
Microsoft Windows series, Linux, Mac, etc.
|
||||||||||||||
|
Standards and
Certifications
|
Safety
|
IEC/EN 62040-1
|
|||||||||||||
|
EMC
|
IEC/EN 62040-2 class A
IEC/EN 61000-4-2/-3/-4/-5/-6/-8, IEC/EN 61000-2-2 ,IEC/EN 61000-3-2/-3 |
||||||||||||||
|
Markings
|
CE
|
||||||||||||||
|
* Base on load percentage
|
|||||||||||||||
|
**Specifications subject
to change without notice.
|
|||||||||||||||
|
***Depending on the model
and voltage, more information please contact with Ablerex
|
|||||||||||||||
|
Battery Bank
Specifications
|
|||||||||||||||
|
UPS model
|
Code
|
Bat. Type
|
Max. Quantity
|
Dimensions (WxHxD, mm/inch)
|
|||||||||||
|
AS 1KVA
|
T04WXX07
|
7AH
|
4
|
236x144x367 / 9.2x5.6x14.4
|
|||||||||||
|
AS 2KVA
|
T12XXX07
|
7AH
|
12
|
322x151x444 / 12.6x5.9x17.4
|
|||||||||||
|
AS 3KVA
|
T12YXX07
|
7AH
|
12
|
322x151x444 / 12.6x5.9x17.4
|
|||||||||||
產品詳細敘述請件以下網址
公司官網
